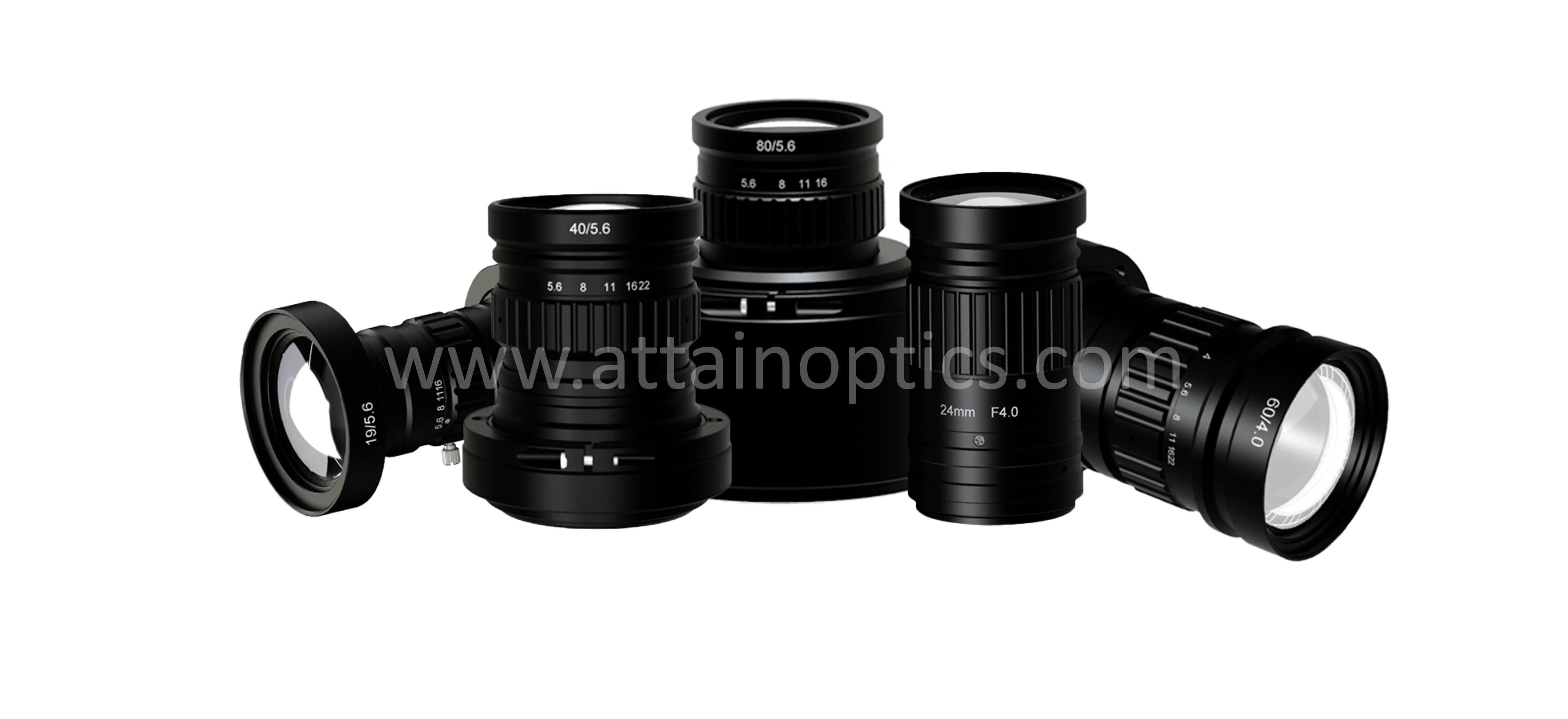

Line Scan Lens

Line Scan Lens



Features

——



●Uniform imaging, high RI>70%
●Supports up to 16k3.5μm camera
●Low distortion, less than 1%
●Available with matching adapter ring M42, M58, M72, M90

Performance parameter

——



Item No. Focal Aperture Mount Format Iris Resolution M.O.D. Distortion
LS7529 7.5mm F2.8 M42 φ29mm Manual 4k7μ 0.2m 100%
LS1956 19mm F5.6 M42 φ30mm Manual 4k7μ 0.2m 0.20%
LS2440 24mm F4.0 M42 φ30mm Manual 4k7μ 0.2m 0.18%
LS254k 25mm F1.8 M42 φ28mm Manual 4k7μ 0.1m 0.80%
LS3528B 35mm F2.8 M42 φ28mm Manual 4k7μ 0.2m 0.10%
LS408k 40mm F5.6 M72 φ60mm Manual 8k7μ 0.2m 0.10%
LS5028-850nm 50mm F2.8 M42 φ30mm Manual 4k7μ 0.2m 0.10%
LS6016k 60mm F4.0 M72 φ60mm Manual 8k7μ 0.1m 0.10%
LS8016k 80mm F5.6 M72 φ64mm Manual 16k3.5μ 0.2m 0.05%
